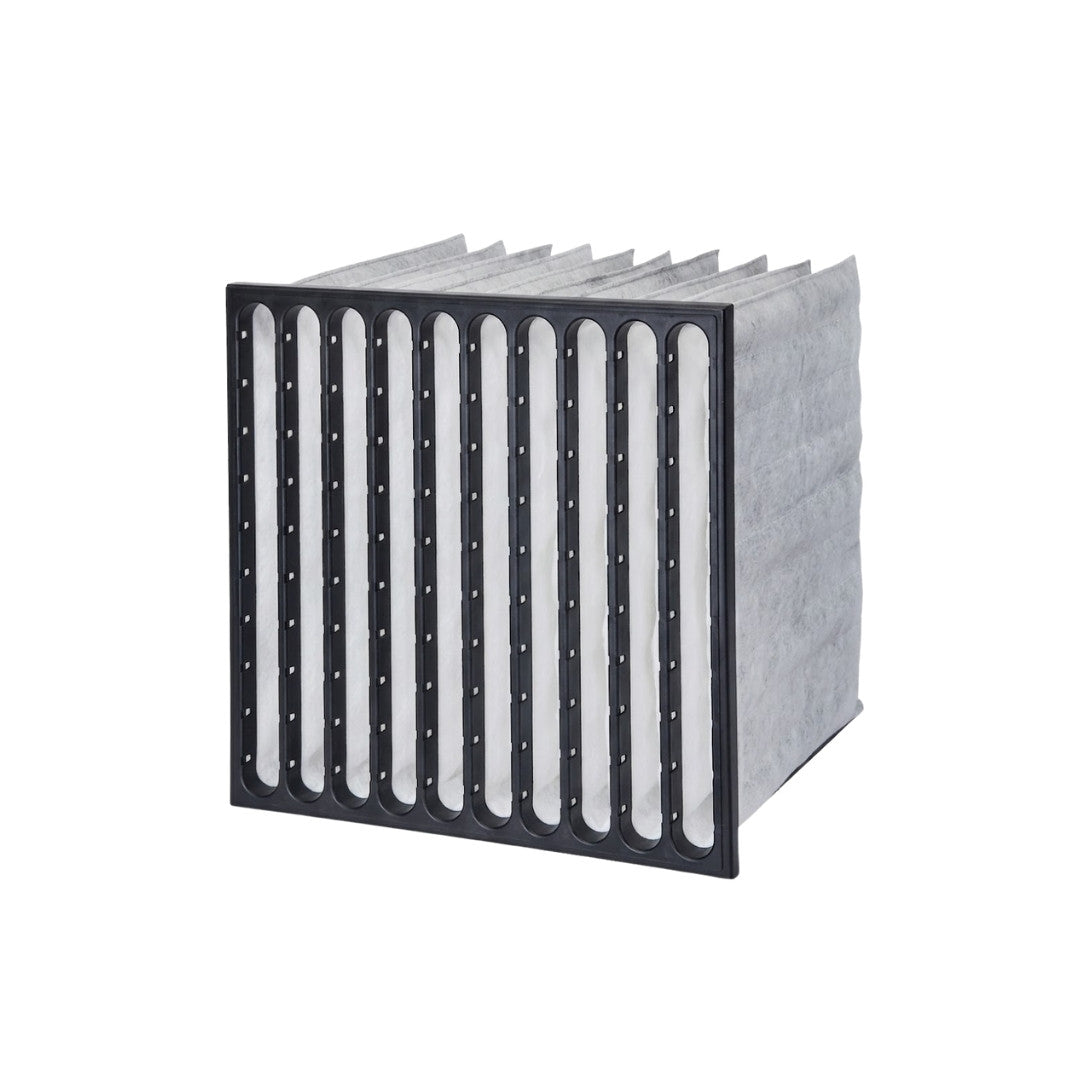

MERV 14 (14A)

Particulate + molecular combination bag filter (2-in-1)

Improves IAQ in commercial spaces; removes moderate concentrations of pollutants and odors

Low initial pressure drop / reduced energy consumption

Conical pockets for mechanical stability

Molded, rigid, aerodynamically-designed front frame

Media: Glass fiber + Activated Carbon (integrated)

Frame: Plastic molded

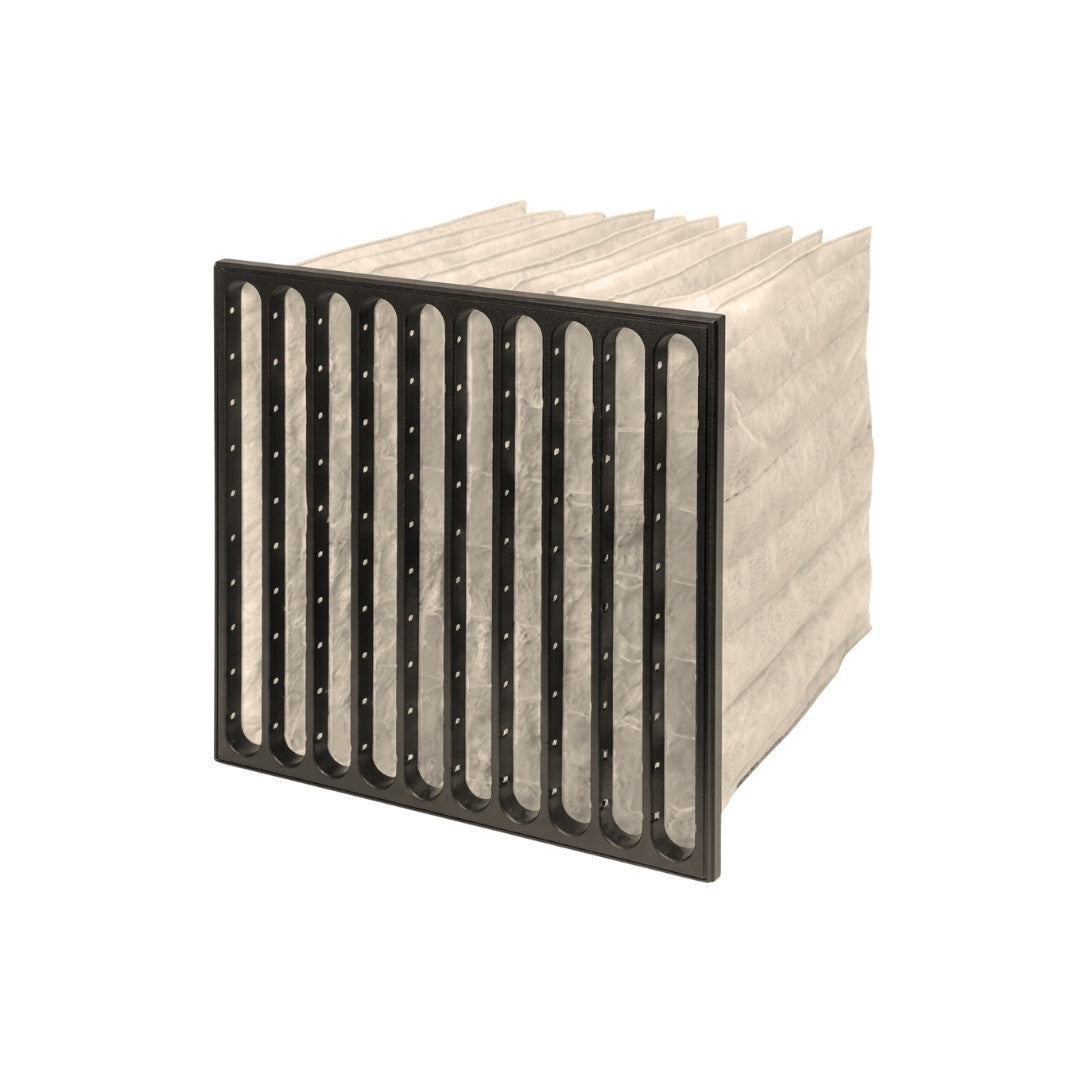

MERV 11/11A, 13/13A, 14/14A, 15/15A

Lowest average pressure drop / lowest energy cost

Up to 12 months service life, no prefilter required

Tapered pockets with optimized media spacing

Molded plastic frame: no jagged edges, no air bypass

Guaranteed to 10" w.g. without filter failure

Depths: 12", 15", 22", 30"

Media: Glass fiber

Frame: Plastic, ABS

MERV 9, 11, 13, 14 (all MERV-A rated)

High-loft air-laid micro-fine glass fiber media

Galvanized steel header frame

Tapered pockets with optimized media spacing

Guaranteed to 5.0" w.g. without filter failure

Multiple sizes: heights, widths, pocket depths, lengths

Depths from 15" to 36"

Media: Glass fiber

Frame: Galvanized steel

MERV 10A

High dirt holding capacity / extended service life

Exceptional strength for demanding applications

Synthetic support backing for filter stability

Pressure drop comparable to pleated panel filters

Media: Glass fiber

Frame: ABS

MERV 13A, 14A

Tear-resistant backing prevents blowouts or failures

Low average pressure drop / uniform airflow

Ideal for indoor firing ranges

Long service life in demanding environments

Media: Glass fiber

Frame: ABS

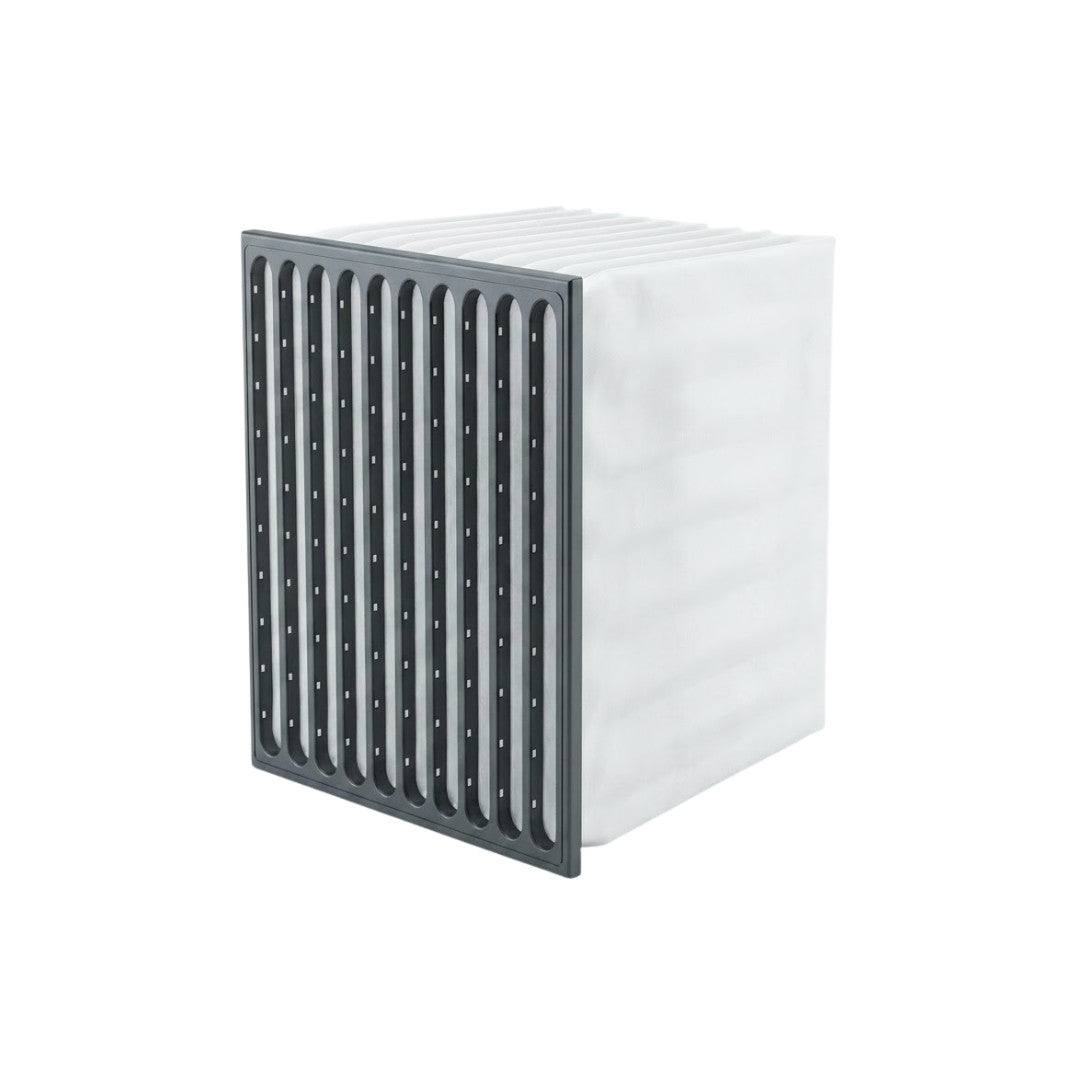

MERV 11/11A, 13/13A, 16/15A

High-strength synthetic media for hostile environments

Withstands moisture, turbulence, high airflow

Operational up to 2,500 cfm

Long service life / consistent performance

Media: Synthetic

Frame: Plastic, ABS

MERV 13A, 14A, 16A

Longest-lasting high-efficiency filter

Lowest life cycle cost

Fine fiber media maintains efficiency throughout service life

Media: Glass fiber

Frame: Plastic, ABS

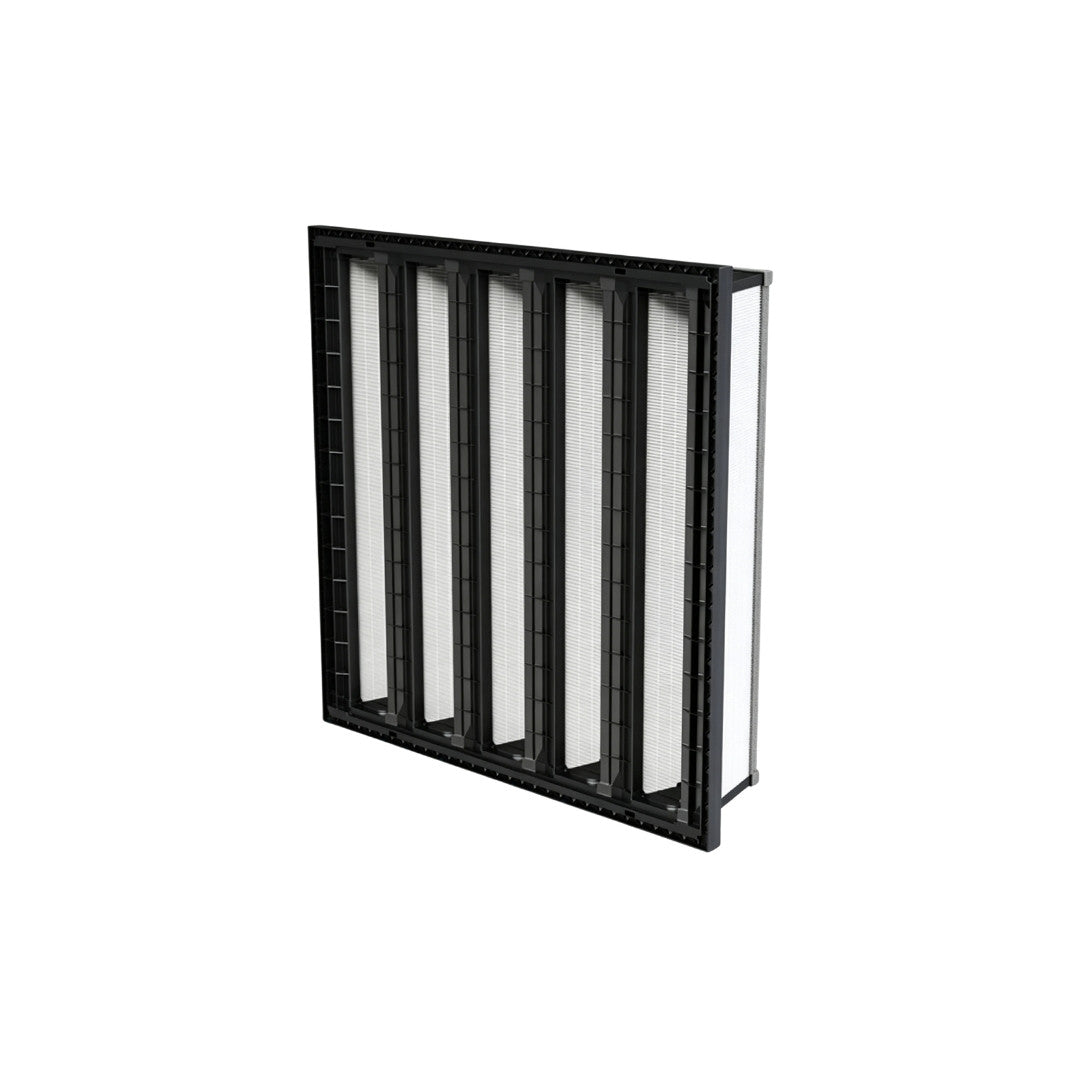

MERV 13/13A, 14/14A, 15/15A

Compact design with full-size performance

Fine fiber maintains efficiency throughout service life

Designed for easy installation in confined areas

Available in 7 standard sizes

Media: Glass fiber

Frame: Plastic, ABS

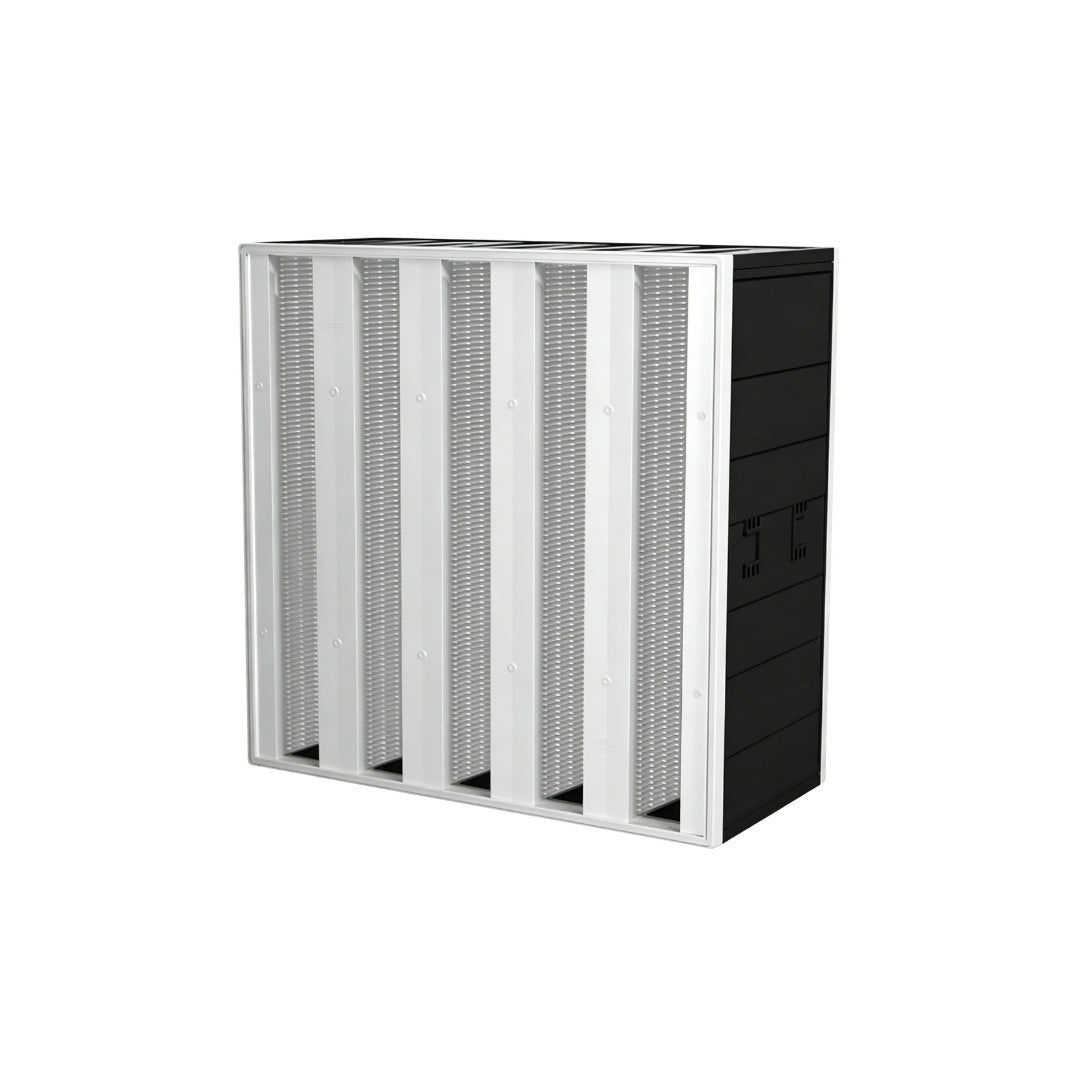

MERV 13/13A, 14/14A, 15/15A

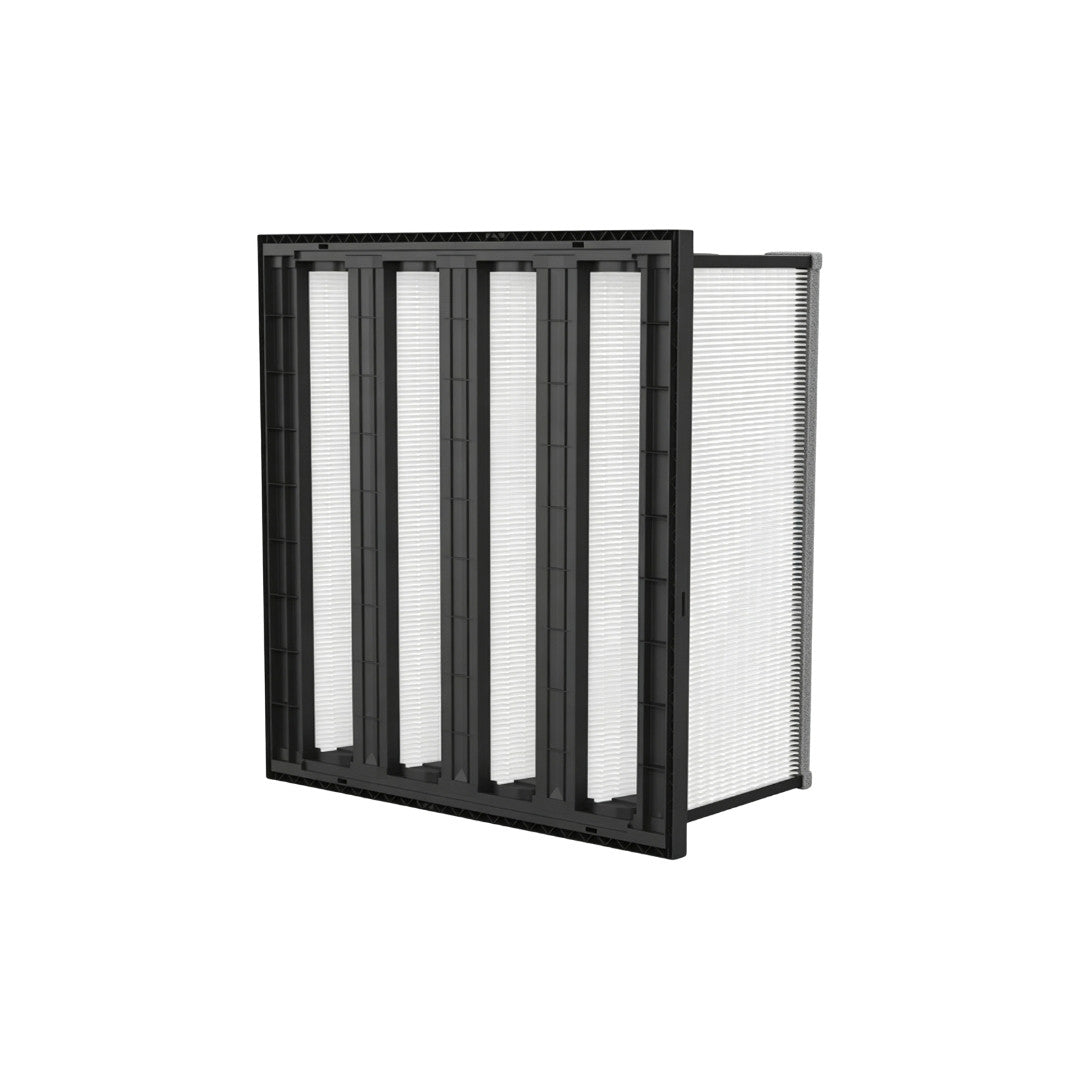

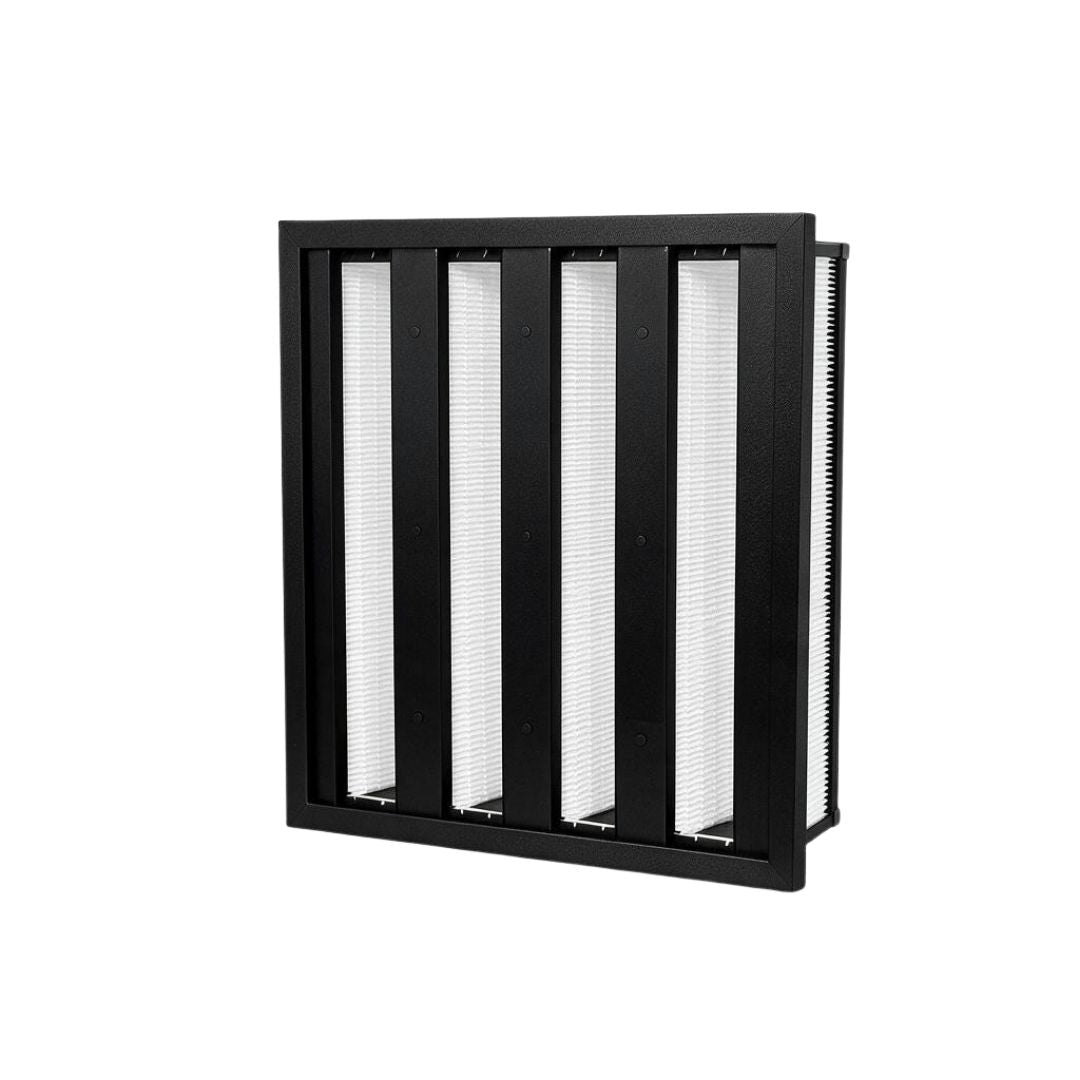

V-bank design for units with limited space

50% footprint reduction vs. traditional 12-inch filters

Integrated plenum reduces resistance with face-mounted prefilter

Designed for easy installation in confined areas

Media: Glass fiber

Frame: ABS

MERV 15A

Synthetic nanofiber media for harsh environments

Low airflow resistance / energy efficient

Long service life

Available in seven standard sizes

Media: Synthetic

Frame: ABS

MERV 14/14A, 16/16A

High-capacity airflow: 2,000 cfm standard / 2,400 cfm for air-starved applications

Lightweight ABS frame with strength for easy handling

Options for gasketed HEPA frames and side-access (11.5" depths)

Media: Glass fiber

Frame: ABS

MERV 15 (14A) / ePM1 70% (ISO 16890)

Particulate + molecular combo in V-bank mini-pleat

Ideal for low to medium concentrations of external/internal pollutants

100% incinerable for sustainable disposal

Can be used to upgrade existing installations

Range of standard sizes available

Media: Synthetic + Activated Carbon

Frame: Plastic molded

MERV 13 (11A) / ePM10 80% (ISO 16890)

Particulate + molecular combo in V-bank mini-pleat

Ideal for low to medium concentrations of external/internal pollutants

100% incinerable for sustainable disposal

Can be used to upgrade existing installations

Range of standard sizes available

Media: Synthetic + Activated Carbon

Frame: Plastic molded

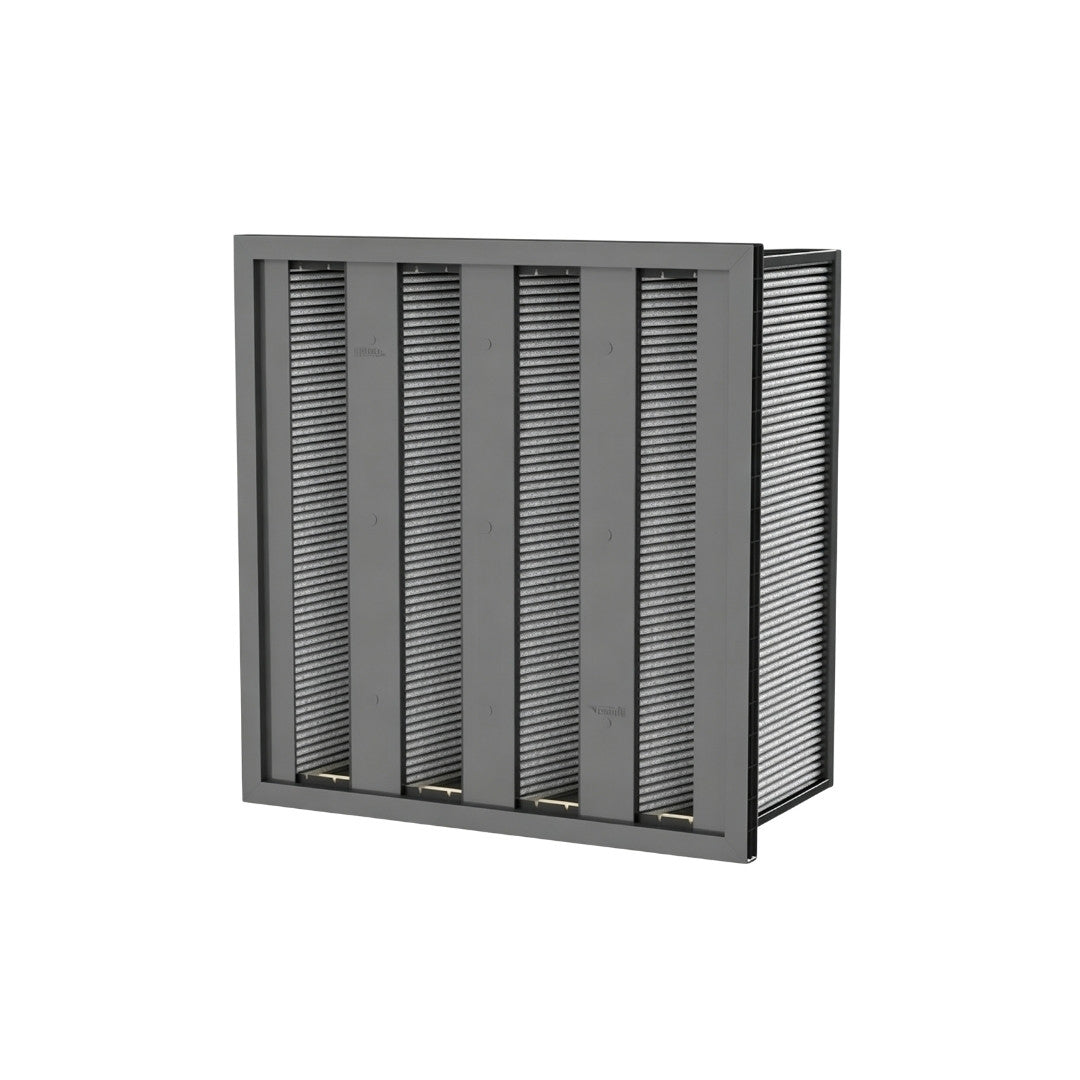

MERV 15 (13A) / ePM1 70% (ISO 16890)

Particulate + molecular combo for organic acids removal

Ideal for protecting sensitive equipment, processes, and artifacts

100% incinerable for sustainable disposal

Can be used to upgrade existing installations

Range of standard sizes available

Media: Synthetic + Impregnated Activated Carbon

Frame: Plastic molded

MERV-A rated efficiency

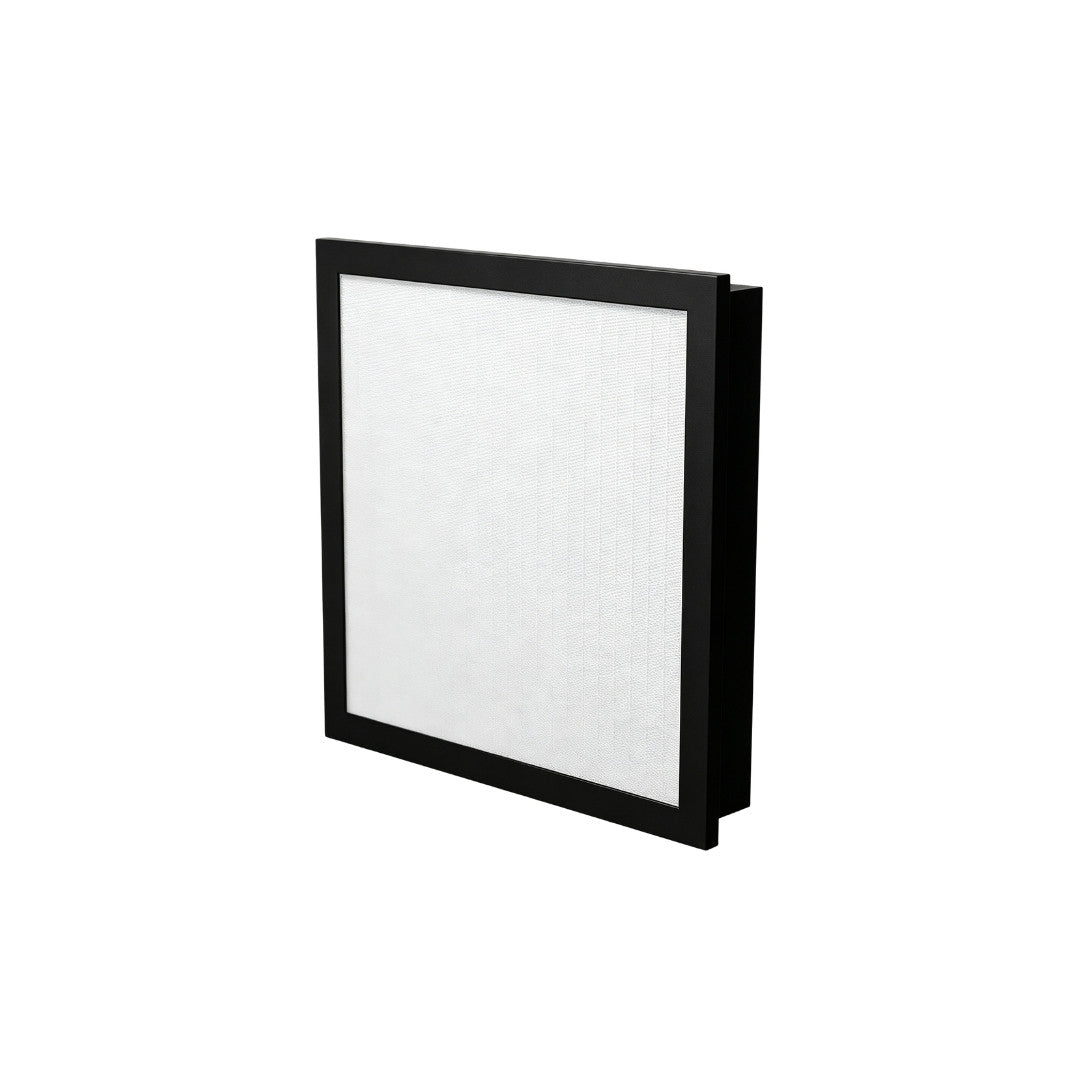

Compact 4" design with header for space-constrained AHUs

Guaranteed to 10" w.g. without filter failure

Stable performance throughout service life

Offered in a variety of common sizes

Media: Synthetic

Frame: Plastic molded

MERV 11/11A, 13/13A, 15/14A

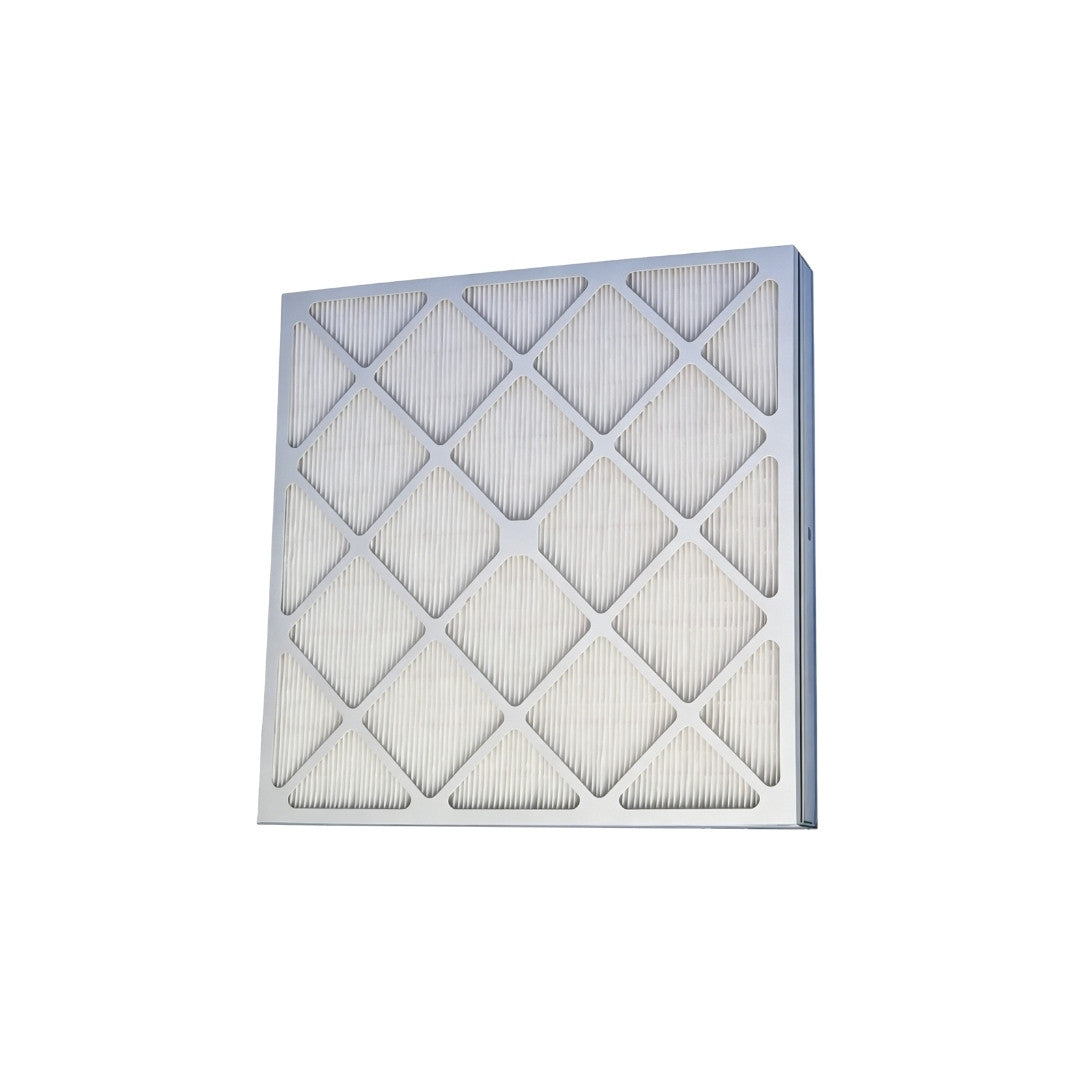

Compact 2" or 4" depth for space-constrained systems

Lowest resistance of any high-efficiency mini-pleat filter

Uniform pleat separation for high dust loading

Media bonded to frame eliminates air bypass

Plastic enclosing frame ensures rigidity and support

Available in a variety of sizes

Media: Synthetic

Frame: Plastic

MERV 11/11A, 13/13A, 14/14A

Wet-laid micro-fine glass media for low resistance and long life

Moisture-resistant, high wet-strength beverage board frame

Guaranteed to 5.0" w.g. without media pack failure

Compact 4" depth for space-constrained systems

Media: Glass fiber

Frame: High wet-strength beverage board

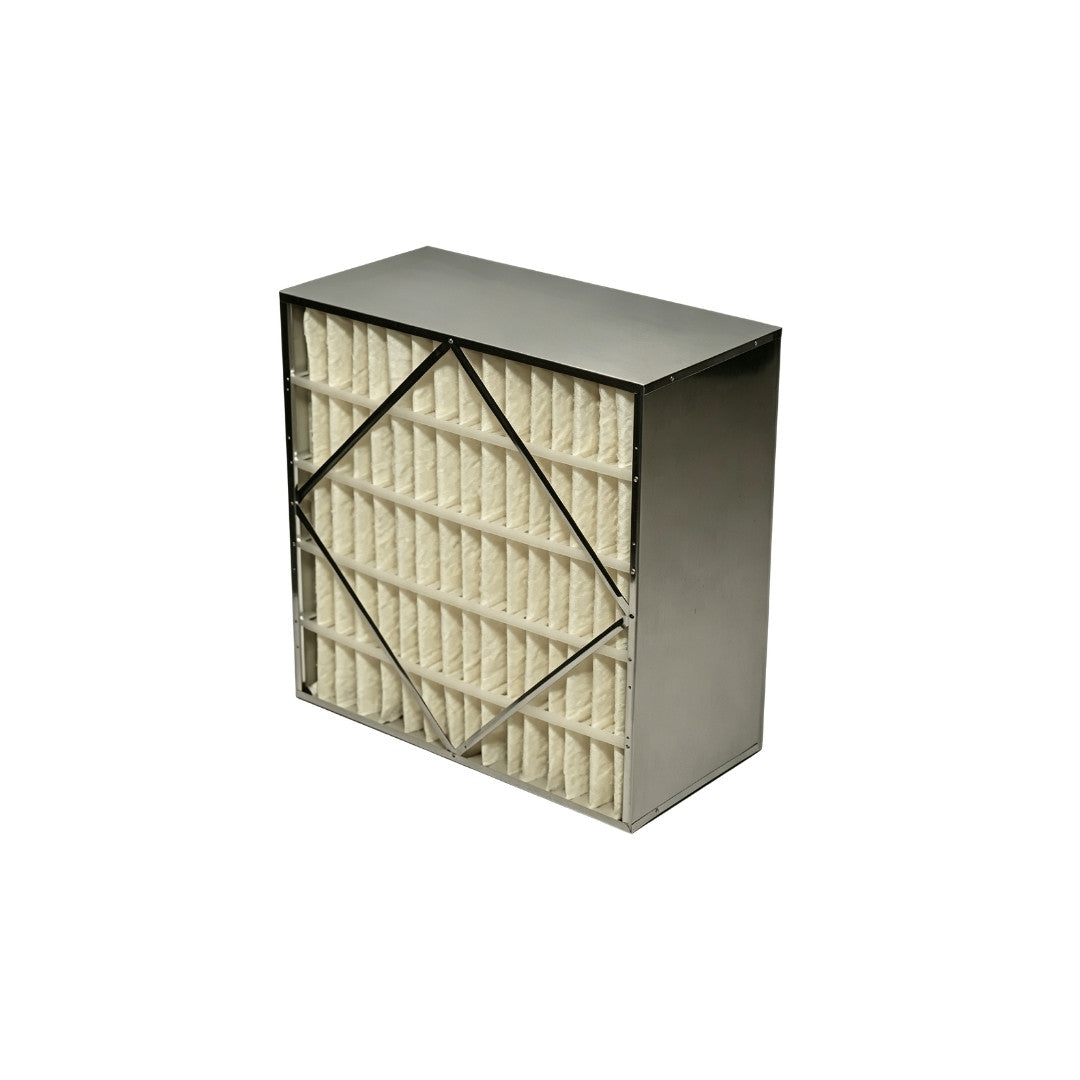

MERV 11/11A, 13/13A, 14/14A

Supported media unaffected by varying airflow or turbulence

Microfine high-loft media blanket for long life and sustained efficiency

Best-in-class energy savings / lasts longer than other box-style filters

Guaranteed to 10" w.g. for highest structural integrity

Media: Glass fiber

MERV 11/11A, 13/13A, 14/14A

Wet-laid microfine glass mat media for stable filtration

Higher moisture resistance than high-loft media designs

Safe-edge aluminum separators for rigid pack and uniform airflow

Media pack fully sealed to frame eliminates air bypass

Galvanized steel frame with aluminized finish / 50% better corrosion resistance

Available with single or double header (gasketed for leak-free seal)

Media: Glass fiber

Frame: Galvanized steel

MERV 9 / 9A | ISO ePM2.5 55%

12-month service life (commercial) / 9-month (industrial)

Dual-layer blended polyester media

Radial pleats with welded wire grid backing

UL900 Class certified

High wet-strength beverage board frame (moisture-resistant)

Depths: 1", 2", 4"

Media: Dual-layer blended polyester

Frame: High wet-strength beverage board

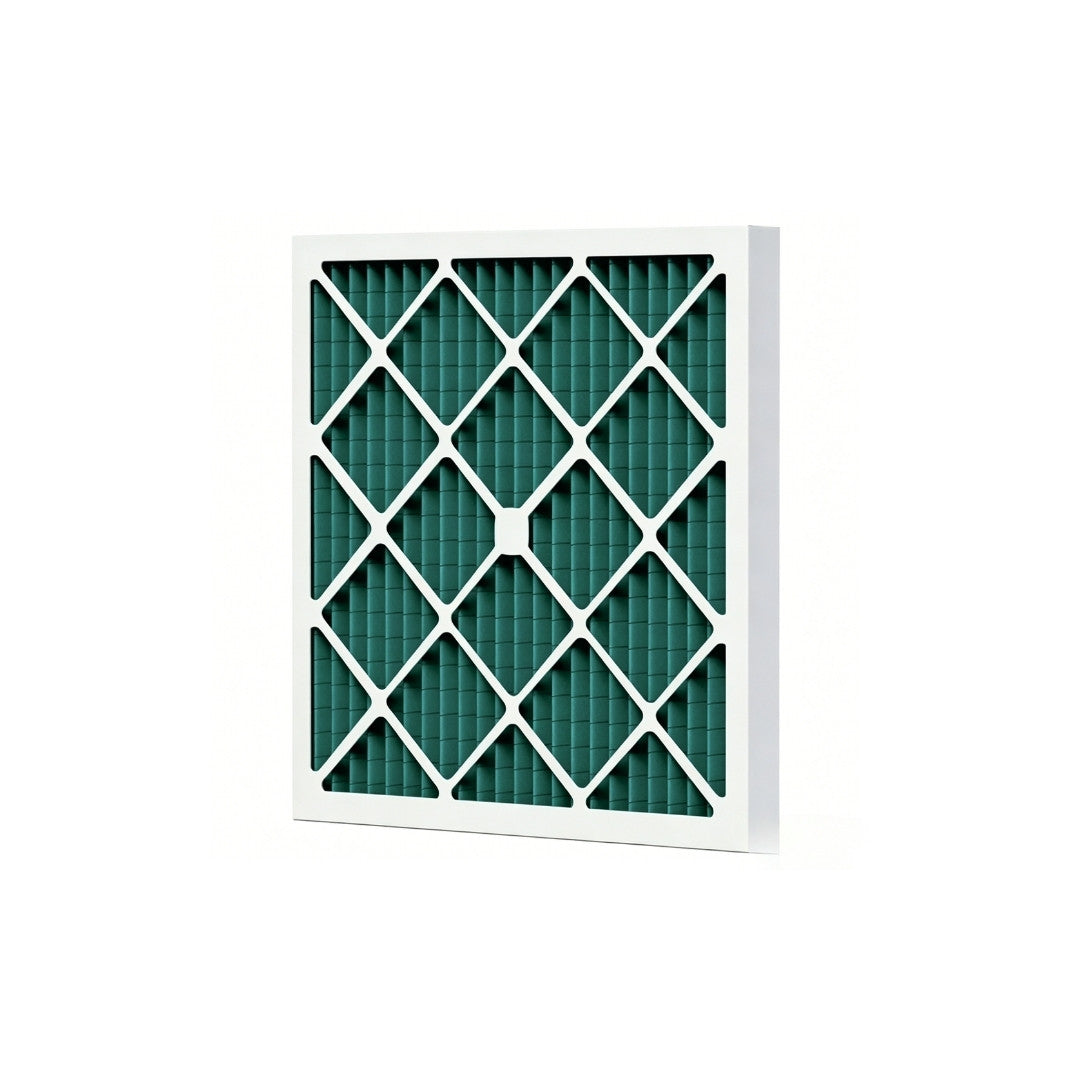

MERV 8 / 8A | ISO ePM10 50%

Longer service life than standard panel filters

Meets FGI and ASHRAE 170 for medical facilities

Reduces introduction of outside air contaminants

UL 900 Class certified

Depths: 1", 2", 4"

Media: Synthetic

Frame: High wet-strength beverage board

MERV 13 / 11A

ASHRAE 241 compliant for infection risk management

Low pressure drop for easy upgrade from MERV 8 to MERV 13

Long-lasting pleated filter reduces replacement frequency

High-strength frame with welded wire backing

Depths: 1", 2", 4"

Media: Synthetic

Frame: High wet-strength beverage board

MERV 7 | ISO 16890 Coarse 60%

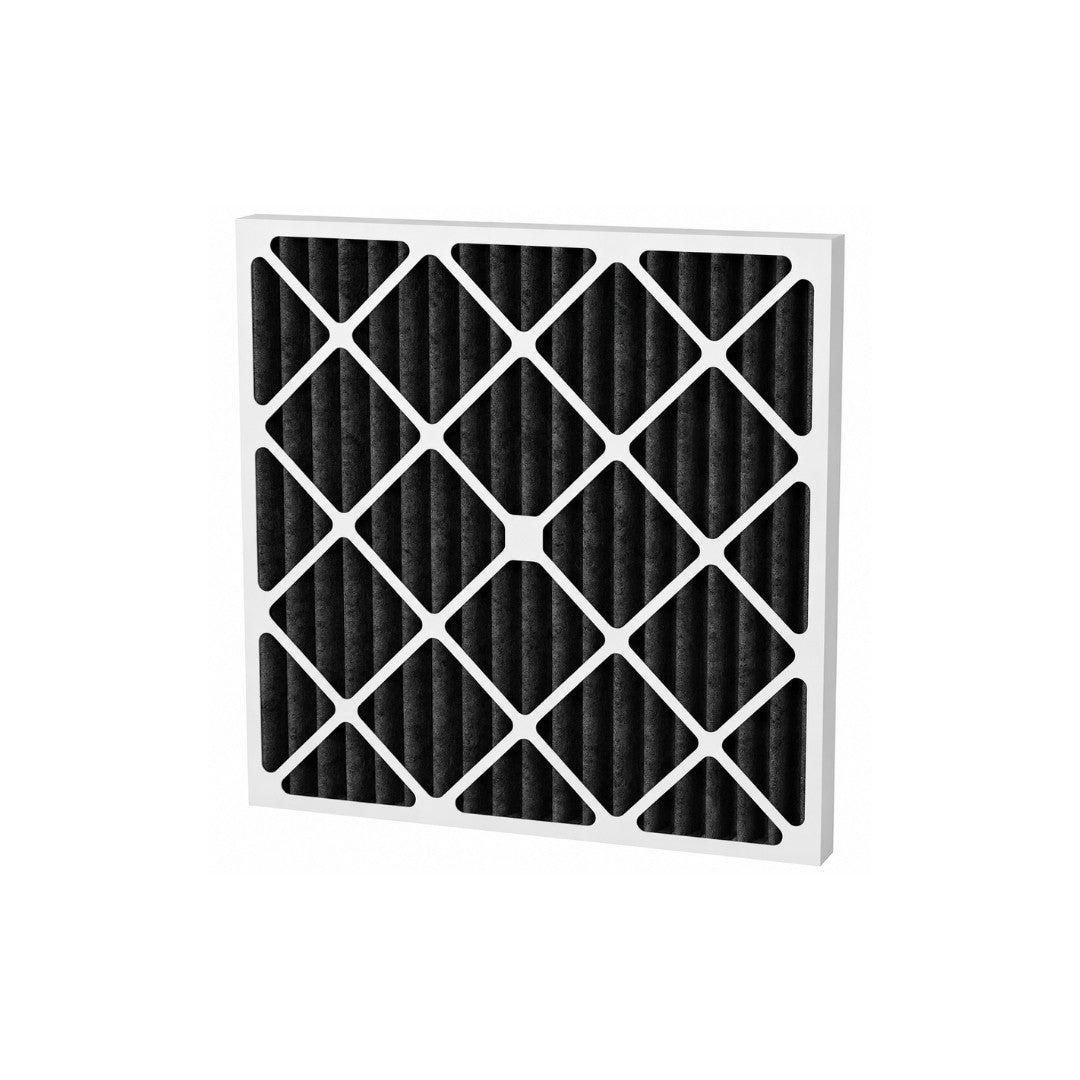

Particulate + molecular combo in compact panel (2" or 4")

Ideal for low-concentration pollutants in tight spaces

100% incinerable for sustainable disposal

Can be used to upgrade existing installations

Range of standard sizes available

Media: Synthetic + Activated Carbon

Frame: High wet-strength beverage board

MERV 8 | ISO 16890 Coarse 60%

Particulate + molecular combo in ultra-compact panel (1", 2", or 4")

Ideal for very low-concentration pollutants in tight spaces

100% incinerable for sustainable disposal

Can be used to upgrade existing installations

Range of standard sizes available

Media: Synthetic + Activated Carbon / impregnated carbon / activated alumina

Frame: High wet-strength beverage board

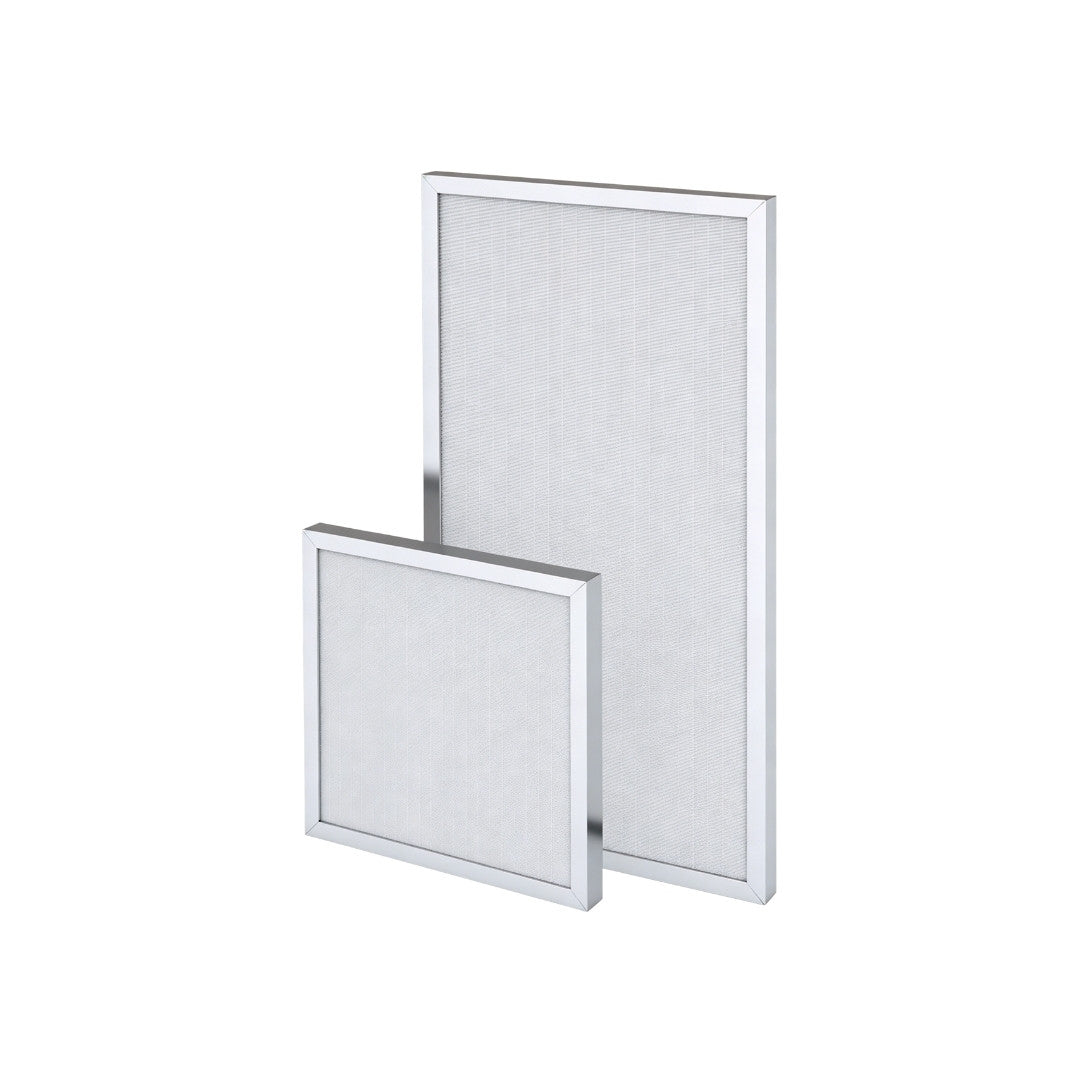

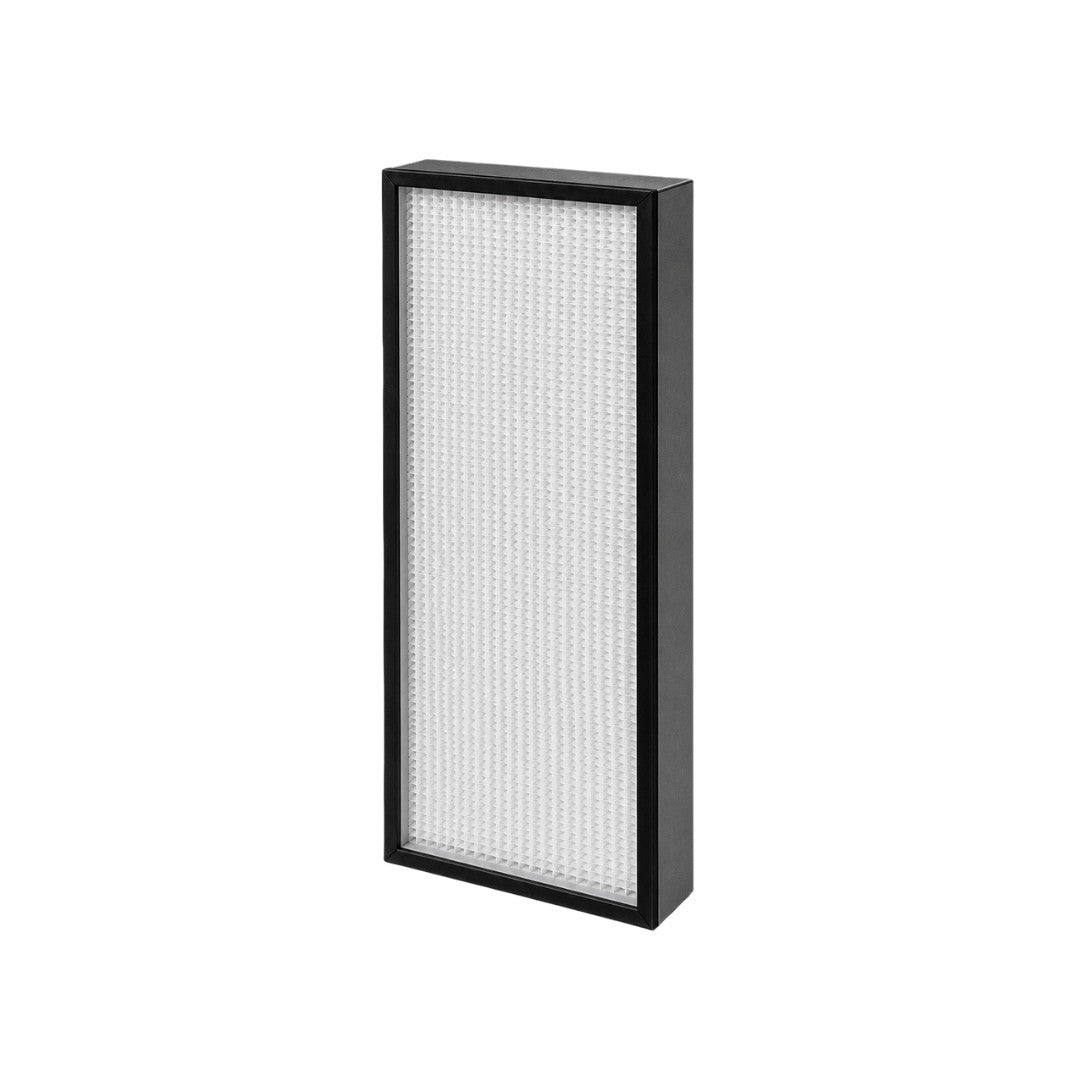

HEPA/ULPA: 95% at 0.3µm up to 99.99995% at MPPS

Microfine glass media with thermoplastic separators

Mini-pleat design for low resistance and high efficiency

Sealing options: gasket, knife-edge, or gel channel

Pack depths: 53mm, 70mm, 100mm

Media: Glass fiber

Frame: Extruded anodized aluminum

HEPA efficiency with ePTFE membrane media

Resists premature oil loading / supports scan testing

Heavy-duty, lightweight anodized aluminum frame

Thermoplastic resin media separators

Barcoded label with test results for traceability

Media: ePTFE membrane

Frame: Extruded anodized aluminum

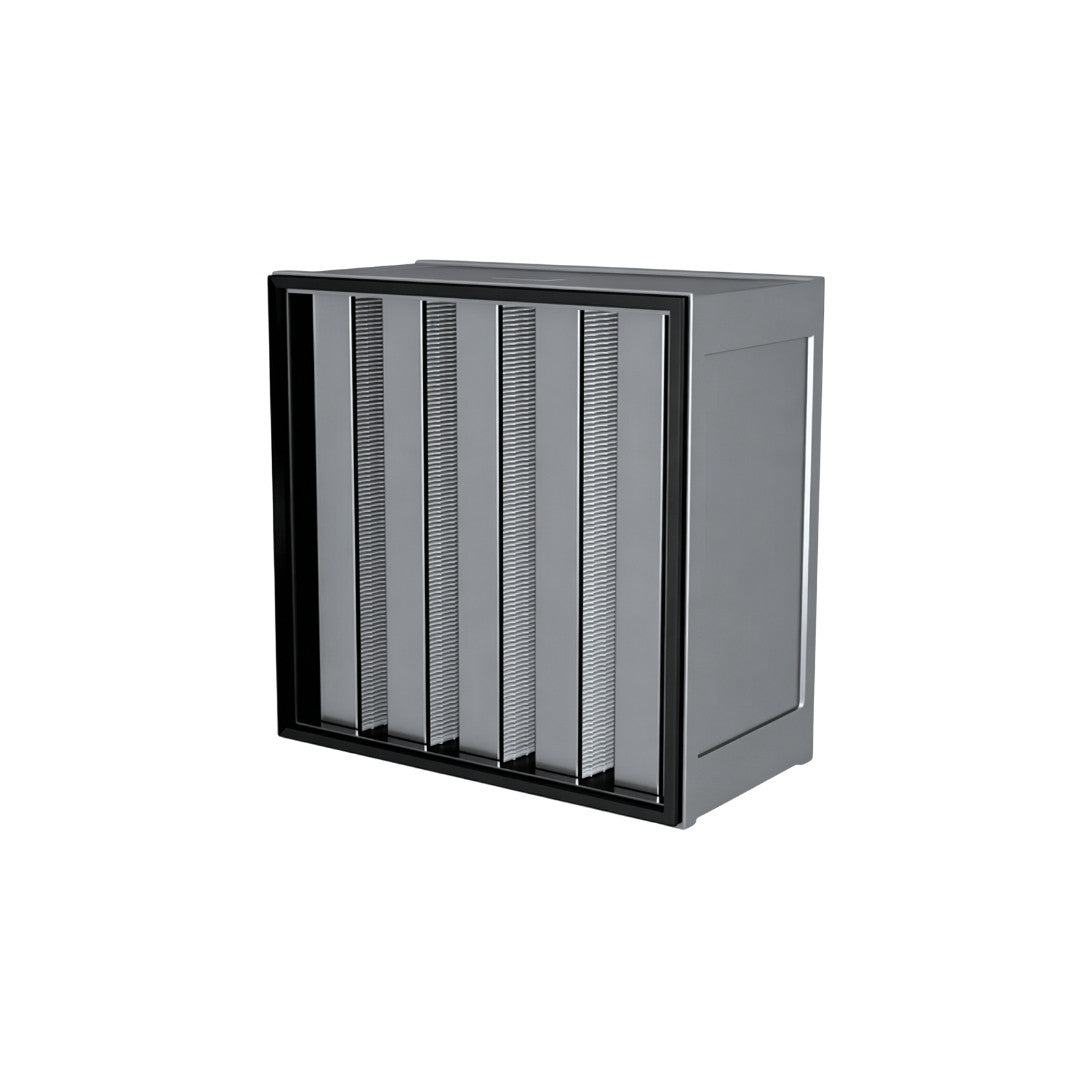

Minimum efficiency 99.99% @ 0.3 µm

High-strength, lightweight V-bank design (ABS frame)

High airflow capacity up to 2,400 cfm

Low pressure drop / energy efficient

Gasket seal configuration for leak-free installation

Halogen-free / VDI 6022 compliant

Media: Glass fiber

Frame: ABS plastic

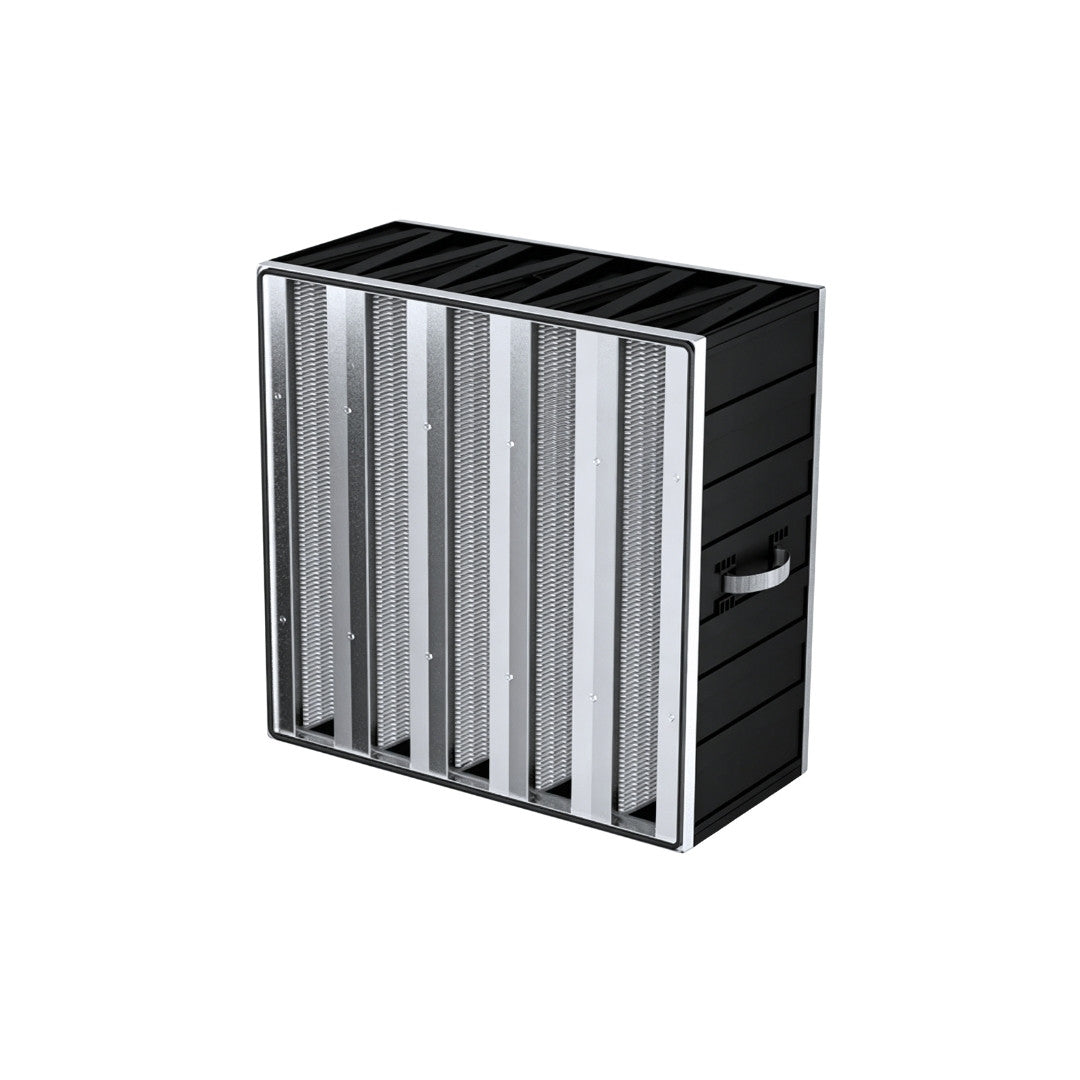

HEPA/ULPA: 95% to 99.999% @ 0.3 µm

High media area lowers pressure drop / extends service life

V-bank design for airflow up to 2,400 cfm

Potted construction for strong, robust filter pack

Suitable for air-starved applications

Sealing options: gasket or gel seal

Media: Glass fiber

Frame: Extruded anodized aluminum

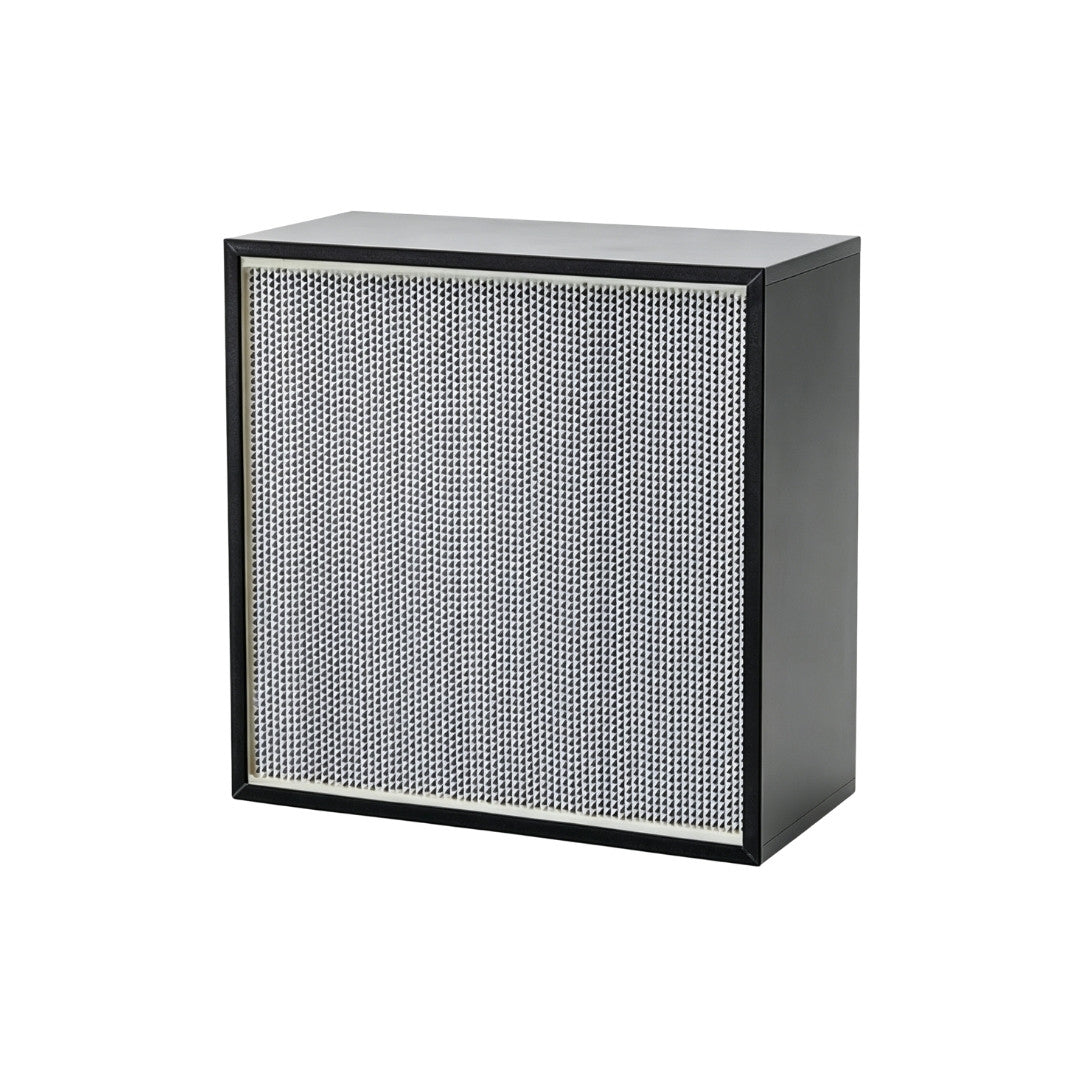

HEPA/ULPA: 99.97%, 99.99%, 99.999% efficiency

16-gauge galvanized steel frame for heavy-duty durability

Urethane potting fully encapsulates filter pack

Moisture-resistant glass fiber media

Sealing options: one-piece seamless gel or gasket

Media: Glass fiber

Frame: Galvanized steel

HEPA/ULPA: 99.97%, 99.99%, 99.999% efficiency

16-gauge galvanized steel frame for durability

Urethane potting fully encapsulates filter pack

Moisture-resistant glass fiber media

Sealing options: one-piece seamless gasket or gel seal

Media: Glass fiber

Frame: Galvanized steel

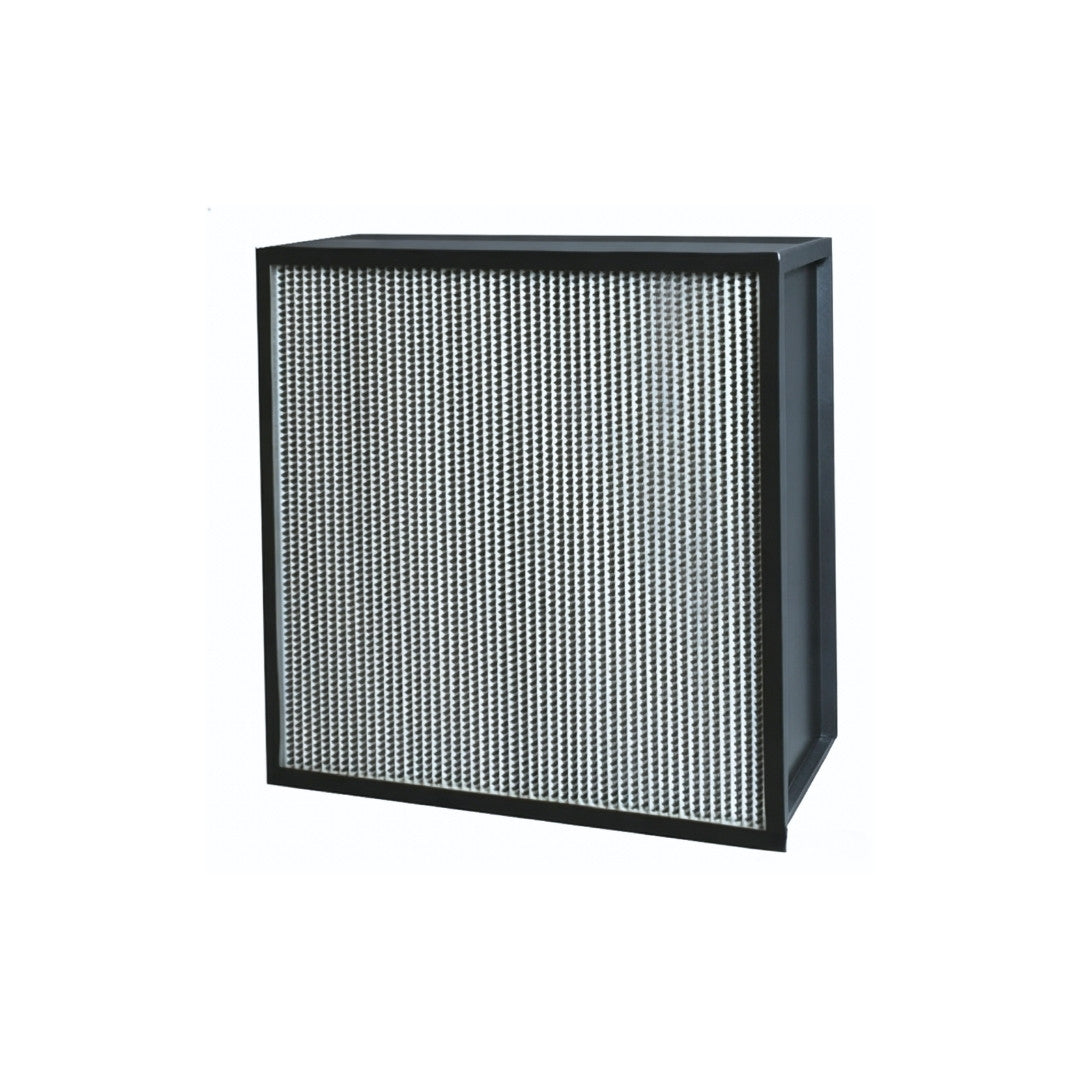

HEPA: 99.97% or 99.99% @ 0.3 µm

Microfine glass media with tapered aluminum separators

One-piece seamless gasket for leak-free performance

Wood frame for structural stability in built-up systems

Media: Glass fiber

Frame: Wood

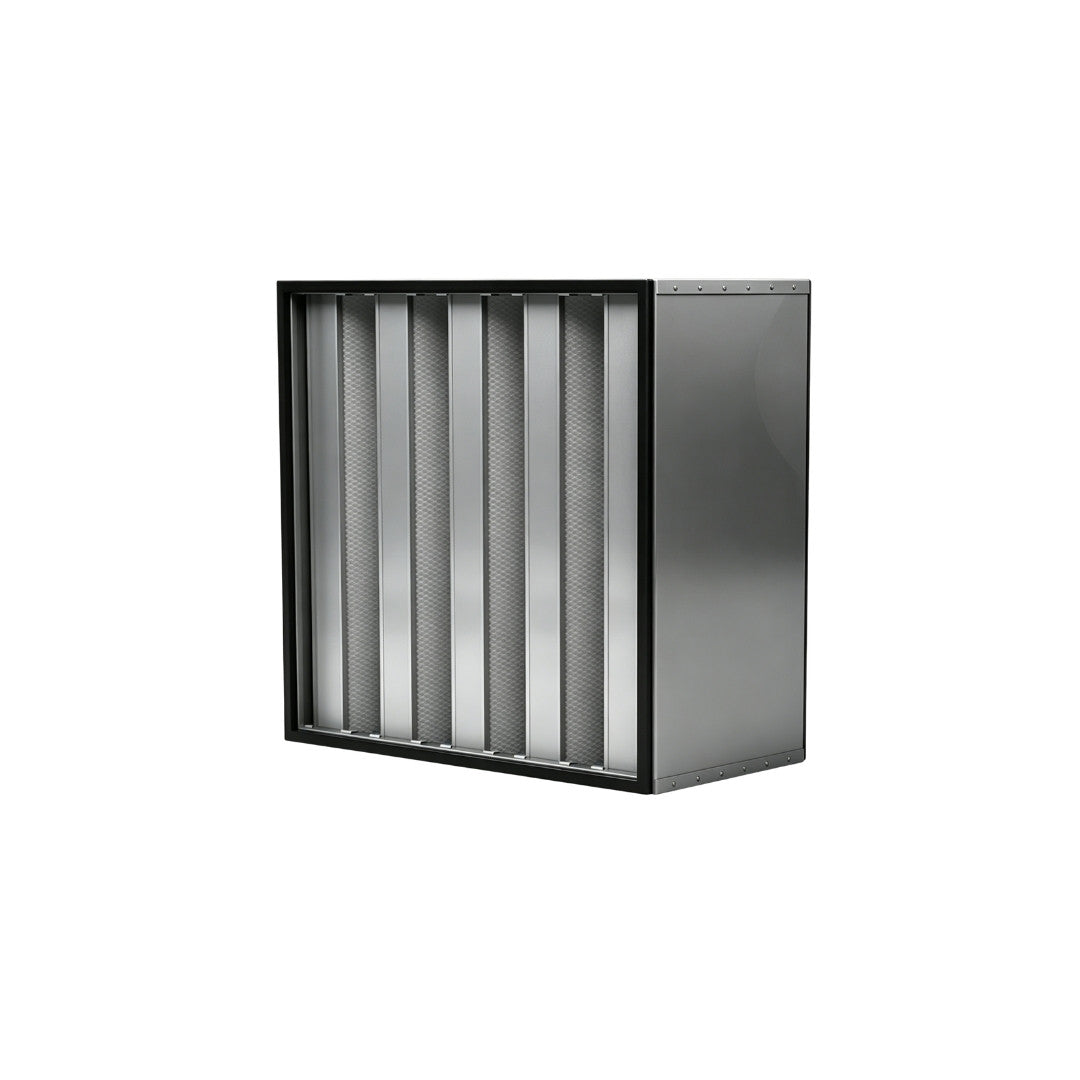

ASME AG-1 compliant nuclear-grade HEPA

Minimum efficiency 99.97% @ 0.3 µm

V-bank mini-pleat design / high airflow capacity

Maximum continuous operating temperature: 250°F (121°C)

Stainless steel frame for high-integrity environments

UL 586 listed / tested per IEST-RP-CC007

Media: Glass fiber (ASME AG-1 FC-3130 qualified)

Frame: Stainless steel

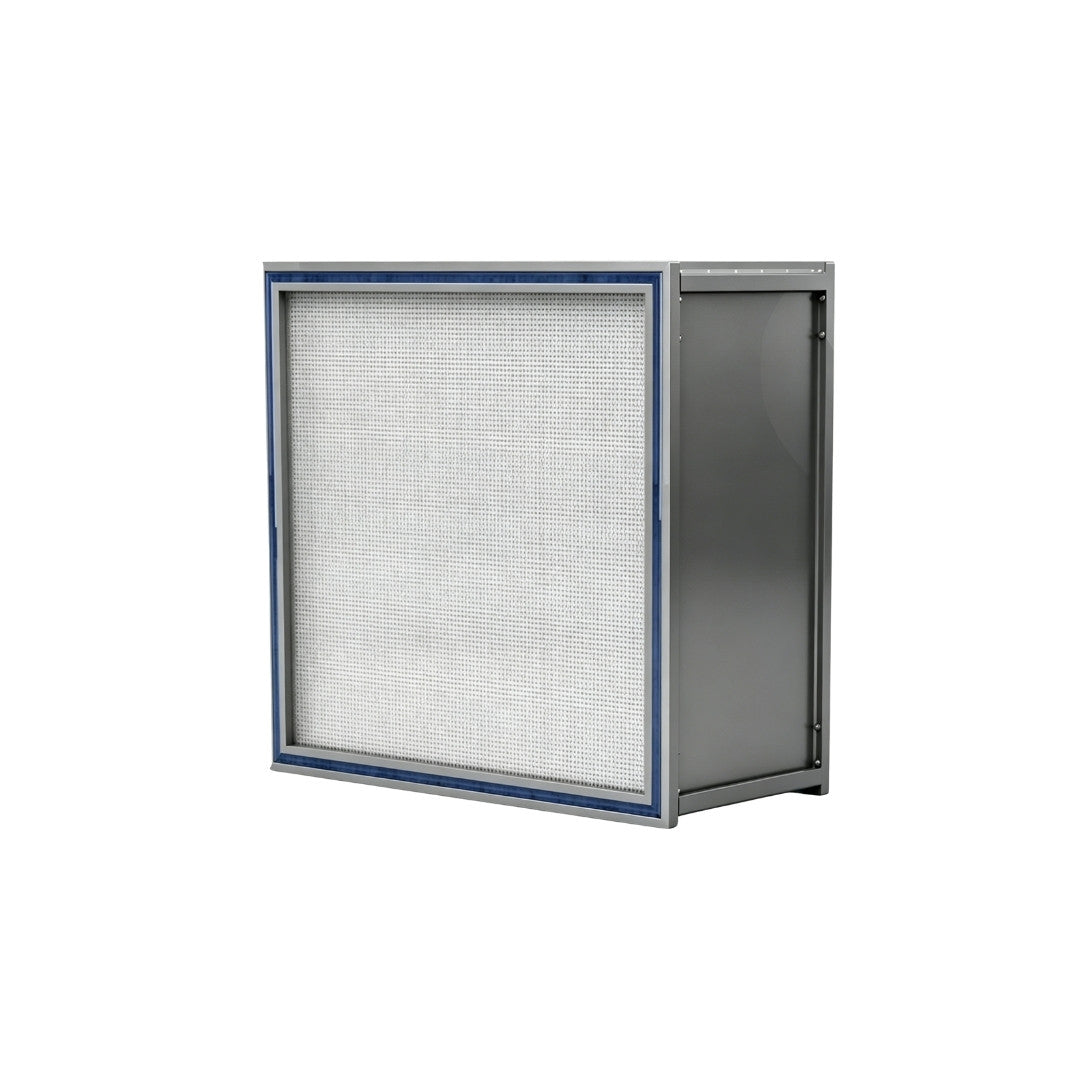

ASME AG-1 compliant nuclear-grade HEPA (Sizes 2, 3, 4, 5, 6, 7, 9)

Minimum efficiency 99.97% @ 0.3 µm

Deep-pleat design with corrugated aluminum separators

Maximum continuous operating temperature: 250°F (121°C)

Stainless steel frame for high-integrity environments

UL 586 listed / tested per IEST-RP-CC007

Media: Glass fiber (ASME AG-1 FC-3130 qualified)

Frame: Stainless steel

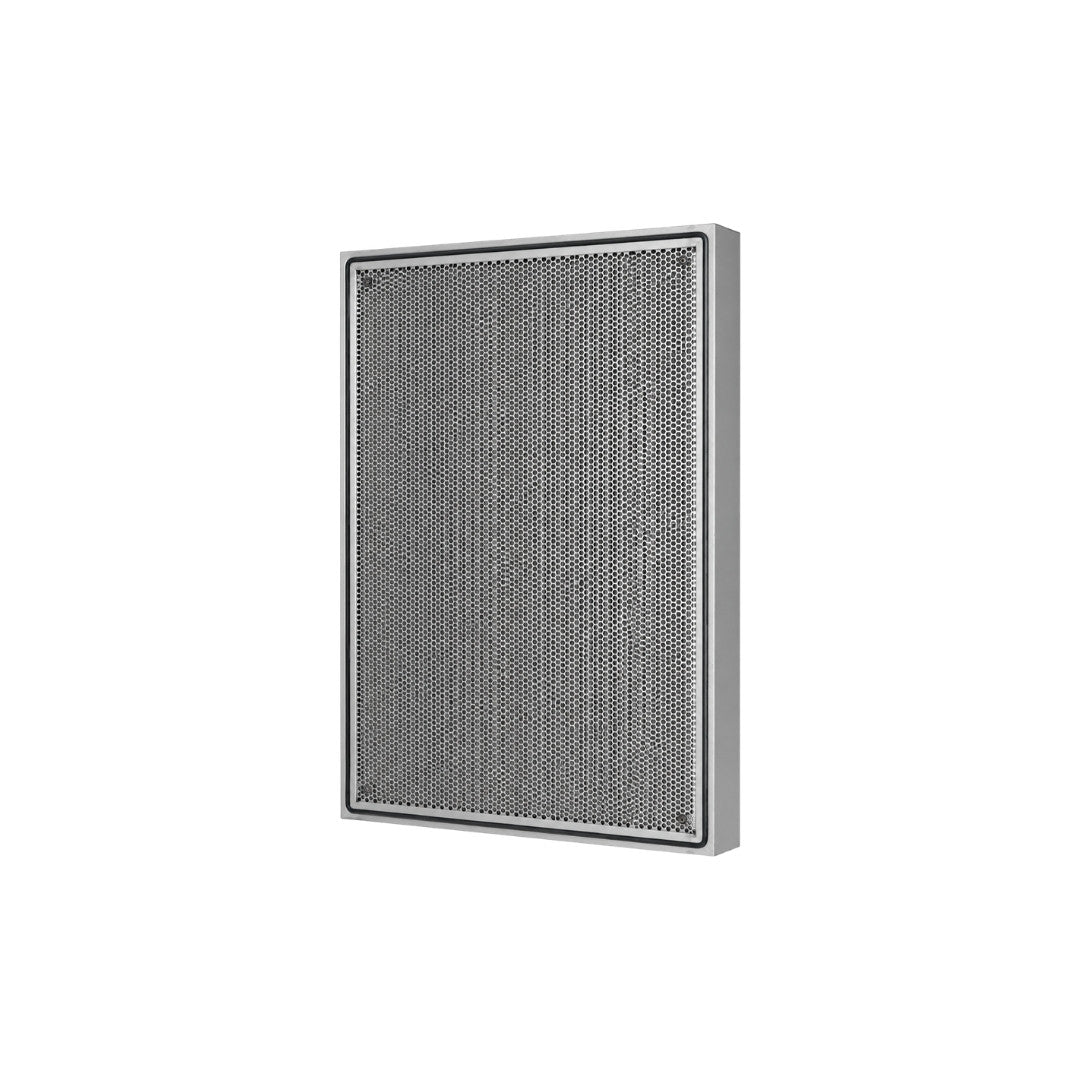

HEPA efficiency for high-temperature process air

Rated for continuous operation up to 650°F (350°C)

Composite ceramic frame for thermal stress resistance

Preconditioned with exclusive heat preparation cycle (572°F / 300°C)

Stainless steel face grids on both sides for media pack protection

Maintains integrity during repeated heating/cooling cycles

Media: Glass fiber

Frame: Composite ceramic

HEPA efficiency: 99.97% or 99.99% @ 0.3 µm (95% option for sub-HEPA)

Rated for continuous operation up to 500°F (260°C)

Suitable for Class 100 validated environments

Stainless steel frame (304) for thermal durability

Corrugated aluminum separators for uniform airflow

Silicone pack-to-frame sealant minimizes bypass

UL 900 compliant

Media: Glass fiber

Frame: Stainless steel
