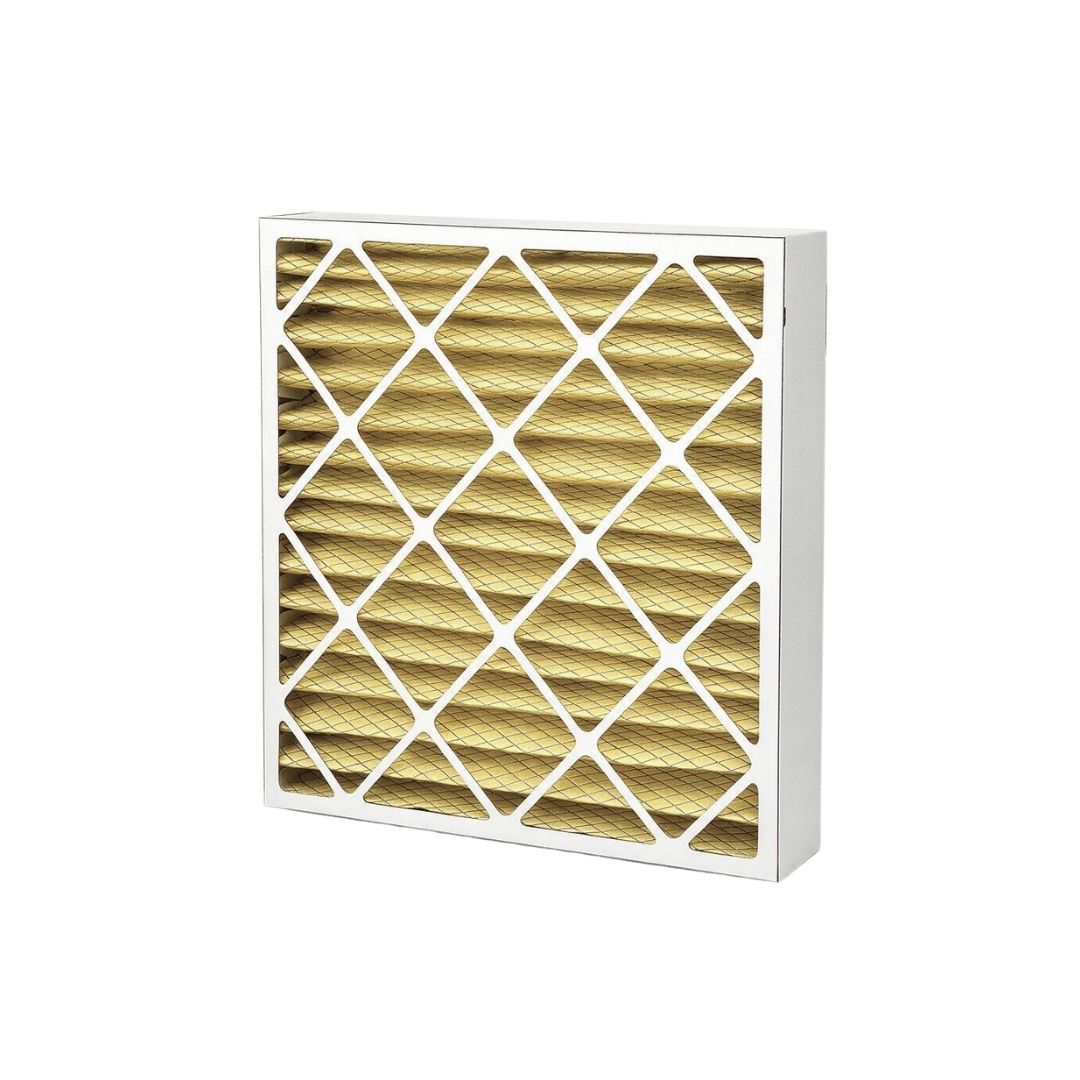

Panel Filter 9

Panel Filter 9 is a high-performance panel filter designed for HVAC systems in commercial and industrial applications. It delivers reliable MERV 9 efficiency with an extended in-service life of 9 to 12 months, reducing maintenance frequency and total cost of ownership.

Key Features

• Extended Service Life: Guaranteed 9 months in industrial applications and 12 months in commercial duty applications.
• Reliable Efficiency: Rated MERV 9 / 9A (ASHRAE Standard 52.2) and ISO 16890 ePM2.5 55%.
• Energy Performance: Carries a 5-Star ECI Rating (Energy Cost Index), indicating low pressure drop and energy-efficient operation.
• Dual-Layer Media: High-performance dual-layer blended polyester media for optimized particle capture.
• Robust Construction: Radial pleats supported by a welded wire grid backing, enclosed in a high wet-strength beverage board frame.
• Fire Safety: UL900 Class certified.

Applications

• Prefilter for higher efficiency filters (bag filters, HEPA/EPA filters) to extend their service life
• Stand-alone filter in rooftop units (RTUs), split systems, free-standing units, packaged systems, and air handlers

Materials and Construction

• Frame: High wet-strength beverage board (moisture-resistant)
• Media: Dual-layer blended polyester

Standard Sizes

• Full size standard: 24 × 24 inches (W × H)
• Depths: 1 inch, 2 inches, or 4 inches
• Other sizes available upon request
